BLAST FREEZER QUICK FREEZING Model 92QF80

	Price: 49585 $ Quantity: Add to cart	Manufacturer: THERMOGEL Model: BLAST FREEZER QUICK FREEZING Model 92QF80

Details

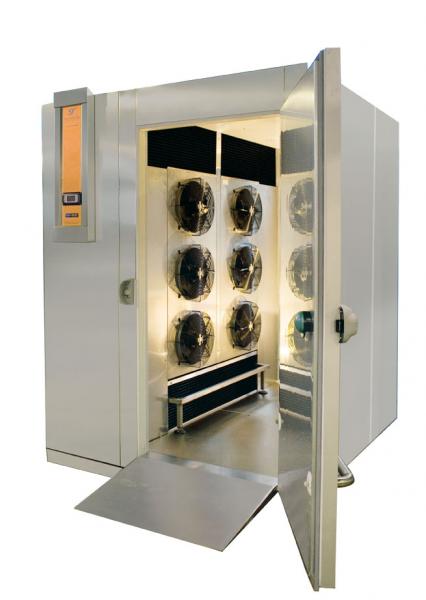

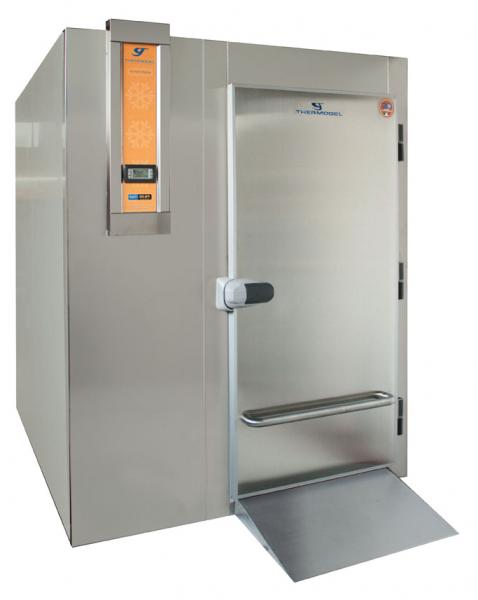

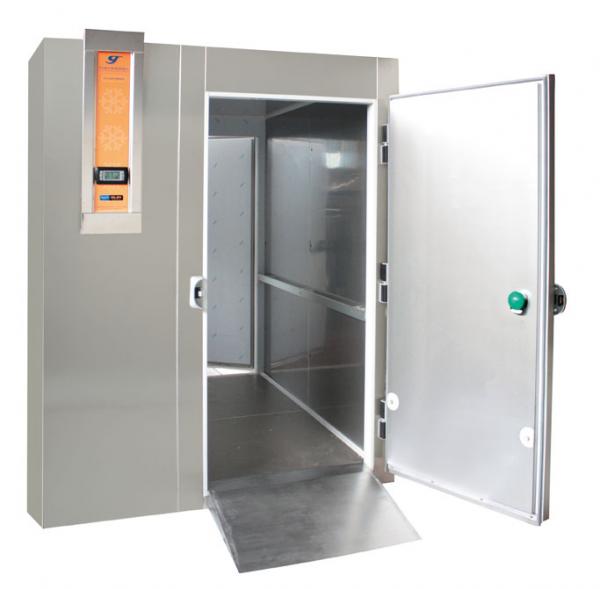

BLAST FREEZER QUICK FREEZING Model 92QF80

Quick deep freezing -40°C for medium and big production for trolleys to the laboratories using freezing system -18°C in to the hearth of the products for breath, pastry, ice cream and gastronomy.

The series Quick freezing is the syntesi of the most advanced tecnology in the cooling system to satisfy the high production and quality more exigent in the market’s needs.

Thermogel has proyected models from 60kg/h to 800 Kg/h with the use of trolleys UNI or made with special and personalized dimensions.

Version QFP:

blast freezing at -18°C in the heart of fresh product input temperature T°C +25

Version QFH:

blast freezing at -18°C in the heart of baked, pre-baked product input temperature T°C +70

DIGITHSUR is a PLC control dedicated to our blast freezer and features a graphic interface offering a simple menu (including multiple languages) and complete icons.

Main functions: • chilling and freezing cycles in compliance with standards (time or temperature, hard or soft);

• storage phase.

Management of special functions or settings:

• creation of completely customisable cycles;

• smart defrosts for energy saving;

• optimum time management thanks to the built-in clock

quick deep-freezing -40°C for medium and big production for rotors

• Professional, modular and desassembled structure in stainless steel, insulated with expanded polyurethane, 43kg/M3 of a 90mm tickness.

• Insulated floor with panels as the structure and reinforcement of 15mm and 350kg/m2 capacity. Covered in stainless steel 18/8 no sweeting.

Equiped door with silicon gaskets, industrial perfectly sealing hinges and locks.

• loading ramp in stainless steel;

• air condensing units complete of;

• tropicalized condensing unit with partialized ventilation controlled by pressostate and de-pressostate semi-hermetic motorcompressor;

• dehydrate philters, liquid receivers and indicators, solenoid valves, manometric group and anything else useful for a perfect functoning.

• High professional system DIGITHSUR control card for the quick freezing and storage control temperature with different programs.



Model : BLAST FREEZER QUICK FREEZING Model 92QF80

Rotor for Trays : 1 Rotor 60x80

Width external : 1850 mm

Depth external : 1380 mm

Higher external : 2300 mm

Door : 1 - 900x1950

Voltage : 400 V

Power : 7 kw

Production : 60/80 kg per hour

Product Information Manufacturer: THERMOGEL Model: BLAST FREEZER QUICK FREEZING Model 92QF80 Horse power: 7 Kw Phases: 3 Powered by: : 480 volts : Voltage: 400 volts Frequence: 60 Hz

Dimensions Width: 1850 mm Depth: 1380 mm Height: 2300 mm Weight:
