AUTOMATIC DIVIDER BIAL

	Price: 0 $ Quantity: Add to cart	Manufacturer: PABIALPA Model: AUTOMATIC DIVIDER BIAL

Details

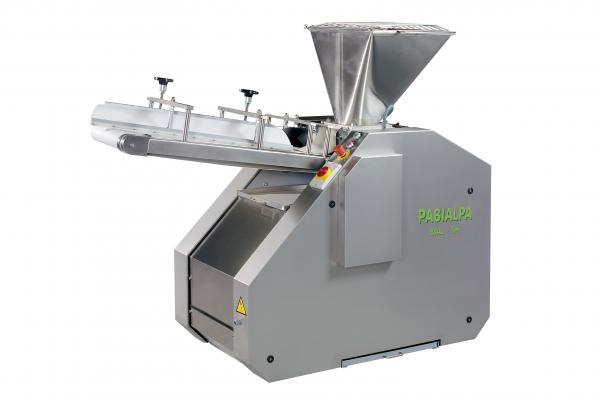

The divider BIAL is designed to work in bakeries or manufacturers with all types of pasta.

It works by absorbing divides the dough without degassing and without abuse.

Facilities:

Stainless Steel Lids

Closed circuit for minimal consumption

Automatic stop when flagged d Oil finishing

Stainless steel tank

System with anti-rebound

2 independent motors, one for the drum piston and the other to the mat out.

Counters of coins with programmable automatic shutdown

Carpet Release nonstick.

Stainless steel hopper of 40 kg of dough with protection.

Casters for easy movement

Model BIAL-LI

Equipped with carpet outlet and motor farineur

Model BIAL-THI

Equipped of a tile for Boulaga adjustable output with a right or left

Model BIAL-MBI

Fitted table for the formation of lumps with elongated farineur and guides was quoted in order to obtain the same extent

Option

Hopper up to 160 Kg Teflon or hopper pressure

Electronic speed

Adjusting the weight motorized

Absorption system for hard cheeses

Different piston diameters

Equipment:

- Frontal and lateral covers in stainless steel.

- Drum in stainless steel.

- Lubrication is by means of closed circuit resulting in oil

consumption to virtually nil.

- Oil level indicator.

- Double guide and piston guide. .

- Anti-bouncing system.

- Collector flour drawer under the exit conveyor belt.

- Collector oil drawer for general oils.

- Equipped with independent engine for exit conveyor belt.

- Piece counter with programmable auto-stop.

- Mounted on wheels for easy movement.

- There is a stainless steel hopper with safety grating suitable for 40kg.

- Net weight 450kg.

- Installation power 1.35kw.

- CE normative -

Width : 680 mm

Depth : 1800 mm

Height : 1400 mm

POIDS RANGE

PISTON OF 75 OF 30 UP TO 350grs.

PISTON OF 90 OF 40 UP TO 450grs.

PISTON OF 100 OF 50 UP TO 550grs.

PISTON OF 110 OF 60 UP TO 650grs.

PISTON OF 120 OF 100 UP TO 1.00grs.

PISTON OF 135 OF 130 UP TO 1.300grs.

PISTON OF 160 OF 250 UP TO 1.750grs

Product Information Manufacturer: PABIALPA Model: AUTOMATIC DIVIDER BIAL

Dimensions Width: Depth: Height: Weight:
