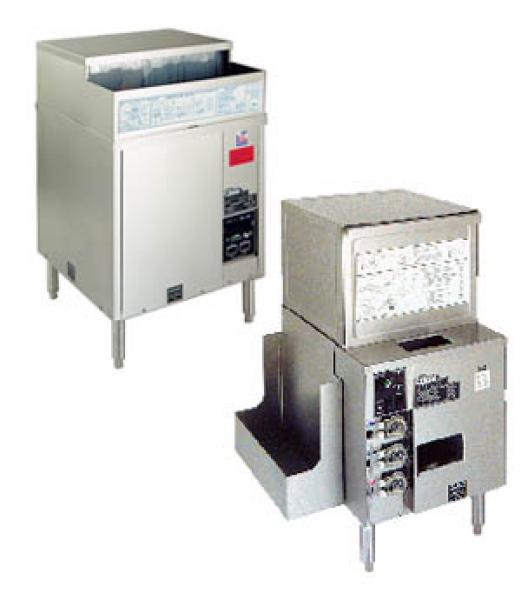

Glass Washer Model GT-18

	Price: 0 $ Quantity: Add to cart	Manufacturer: GLASTENDER Model:

Details

Glass Washer Model GT-18



Removable top for easy cleaning access (GT-18, GT-18+1, GT-18+1L, GT-18+1R, GT-18+2, and GT-18+2-IC tops are interchangeable)



• Drive Wheel and Glass Rack lift out for cleaning

• Two 16" diameter polypropylene racks included

• No curtains are required

• Removable side panels for easy service access

• Spray box unlatches for easy cleaning and visual inspection - 15 spray nozzles have been engineered for maximum soil removal

• Digital temperature gauge built into switch panel

• Intelligent microprocessor control delays cycle start, up to two minutes, when incoming water is below 120ºF (49ºC)à

• Automatic peristaltic metering pumps accurately dispense detergent, sanitizer and rinse aid

• Prime Switch for quick chemical priming

• 1/6 HP pump recirculates wash water and rinse water

• Fractional HP drive motor powers the belt-driven rotary rack and includes built-in slip clutch General Plumbing

• Plumb with 1/2" water supply. Adapt to 3/8" FMPT.

• Minimum water pressure is 25 PSI

• Maximum water pressure is 100 PSI. Install water pressure regulator if line pressure is over 100 PSI. Water valve on unit has built-in strainer and flow control to provide consistent volume between 25 and 100 PSI

• Install separate water shut-off valve

• Unit has built-in air gap - vacuum breaker is not required

• Maximum temperature is 150ºF (66ºC)

• Minimum temperature is 120ºF (49ºC).

• Consumption is 2-1/2 gallons per cycle Drain

• 1-1/2" tailpiece.

• Use open type floor drain for maximum drainage Electrical

• 120V, single phase, 60Hz, 6-foot grounded cord included

• Dedicated 15 amp circuit recommended

• Power requirements - 3.5 amps

Detergent

• Extra heavy duty, non-foaming, commercial liquid dishwashing detergent is required - .30% concentration

• Consult local chemical supplier to match detergent with local water conditions

• Liquid chlorine bleach (sodium hypochlorite - 5.25% solution) adjusted to 50 ppm Rinse Aid

• Liquid Rinse Aid adjusted for proper sheeting Capacity

• 2 minute cycle, 70 second wash and 22 second rinse exposure

• 10 glasses† per minute or 600 per hour (maximum glass height 10" - including pitchers and wine carafes)

Materials

• 20 gauge stainless steel parts include: cabinet

• 18 gauge stainless steel parts include: floor and tanks

• 16 gauge stainless steel parts include: leg mounting brackets and legs

• 11 gauge stainless steel parts include: drive wheel

• 1" clearance required to remove top

• Front side service is essential

• Detergent, Sanitizer, and Rinse Aid containers are stored externally

- six-foot lengths of tubing are provided. Storage for three -

one-gallon containers is required within five feet

Based on 2-3/4" diameter bar glasses

Product Information Manufacturer: GLASTENDER Model:

Dimensions Width: Depth: Height: Weight:
