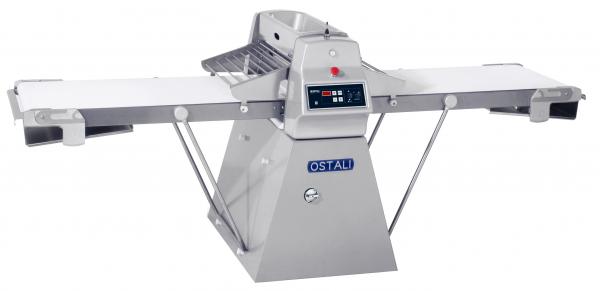

SEMI-AUTOMATIC SHEETER BETA CLASSIC 600
 |
||
Details
The Beta Classic 600 has a rolling width of 600 mmIt is equipped with a semiautomatic Beta Computer The belt movement can be reversed using a joystick control The best starting point for complete automation.
Produced with the same framework as the Beta
Classic, this model includes an automatic computer this model includes a 50 programs Touch Screen computer for easy and direct use of the machine
The BETA computer allows to select and store 11 programs to manage the decrease in rolling thickness.
Each program controls:
- the number of passes
- the opening of the cylinders for each pass -
- (Beta Classic from 0.1 to 40 mm - Beta Tower from 0.1 to 80 mm)
In order to go from one pass to the next, the operator uses the belt reversal
joystick control for the Classic model or the pedal control for the Tower model.
At the end of each pass, the cylinders automatically move into the next position
Computer Touch Screen
The TOUCH SCREEN computer allows to select and store 50 programs. Each program controls:
- the number of passes (max 70)
- the opening of the cylinders (0,1÷40 mm Touch Classic, 0.1÷80 mm Touch Tower)
- the speed of the belts (from 5 to 45 m/min)
N.B.: the ratio between entry and exit speed is constant
- the end-of-cycle side with folds
- the end-of-cycle side with manual rolling on the rolling pin
- the end-of-cycle side with automatic rolling on the rolling pin
- the end-of-cycle side with automatic rolling and stops to cut the beginning and end
of the dough - the automatic flour dusting with the possibility to switch it off - the pause in order to give the operator the possibility to turn the dough over A program can be created using one of the following quick generation modes:
- EASY START: setting only the starting thickness, final thickness and number of passes. In this mode, the computer selects the optimized decrease scale.
• SELF LEARNING: the machine is able to store the processing performed • Cutting device with rotating moulds
Automatic flour duster
for cutting croissants, pizzas, etc Automatic winder
Reinforced base (Classic model) with stainless steel tubes
Reinforced base (Tower model) with stainless steel tubes and handle
Manual control for reversal of the belts
Belt width : 600 mm
Cylinder Diameter : 72 mm
cylinder opening : 40 mm
Speed 30 m/Per minutes
Power : 1,2 Kw
Weight : 280 Kg
Voltage : 240V/60 Hz/1 Phase
Depht : 1100 mm
Lenght : 2070 mm
