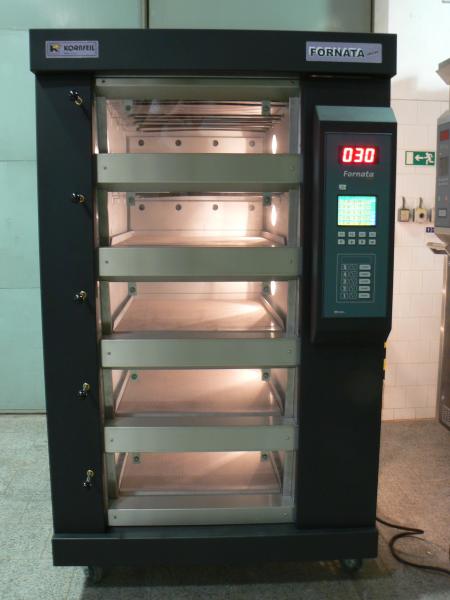

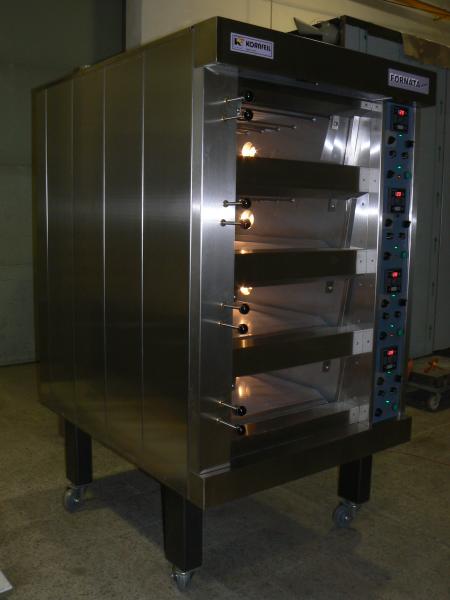

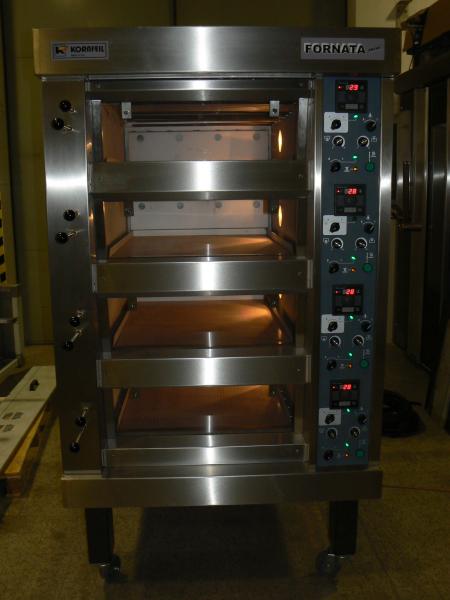

FORNATA Electric deck ovens
 |
Price:
|
|
Details
FORNATA Electric deck ovensFORNATA electric deck ovens, featuring a baking surface between 4 and 22 m2, find their
use mainly in small bakeries, confectioneries, grocery supermarkets, and other areas
with a limited availability of natural gas or with more affordable electricity, providing
fresh bakery products throughout the day. Capable of simultaneously baking different varieties of products, FORNATA ovens are highly versatile.
Standard features of FORNATA ovens • Independent baking of different types of products in individual decks
• Low consumption of electricity
• Auxiliary steaming unit
• Optional number of decks
The universality of electrical deck ovens makes them suitable for bakeries, confectionaries and supermarkets for ensuring fresh baked goods throughout the day.

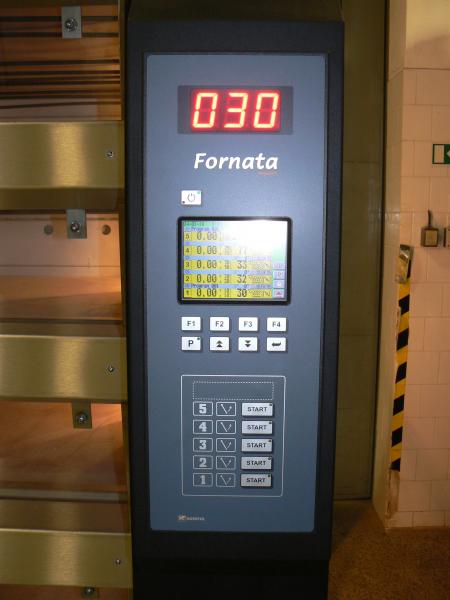

Deck ovens are produced with 3 to 5 decks, each with separate controls, which enables simultaneous baking of various types of baked goods. There are three levels of upper and lower heat for each deck with regulators that maintain the selected temperature.
The independent steaming units situated in the bottom frame ensure equal steaming of the whole baking area.
Advantages of the Fornata deck oven
Variable number of deck
Additional steam unit
Low energy consumption
Separate deck controls
Oven type Fornata 4 Fornata 5 Fornata 6.5 Fornata 7.5 Fornata 10 Fornata 12.5 Fornata 15 Fornata 18
Baking surface m2 3,9 5,2 6,5 7,5 10 12,5 15 18
Baking surface width
1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm 1200mm Baking surface depth
1080mm 1080mm 1080mm 2080mm 2080mm 2080mm 2080mm 2080mm Number of deck
3 4 5 3 4 5 4 5 Maximal input
26,5kW 31kW 38kW 39,5kW 50kW 62kW 73kW 89kW Average el. consumption 15kWh 18kWh 23kWh 28kWh 31kWh 38kWh 38kWh 38kWh
Baking output kg/h
50 70 90 100 130 160 180 200 Oven dimensions - width 1830mm 1830mm 1830mm 1830mm 1830mm 1830mm 2550mm 2550mm
Oven dimensions - depth 2090mm 2090mm 2090mm 3150mm 3150mm 3150mm 3200mm 3200mm
Oven dimensions – height
2570mm 2570mm 2870mm 2570mm 2570mm 2870mm 2500mm 2500mm Total weight 2120 kg 2220kg 2320kg 2980kg 3300kg 3420kg 3650kg 3650kg
Connection to el. Power
3x380V / 50Hz 3x380V / 50Hz 3x380V / 50Hz 3x380V / 50Hz 3x380V / 50Hz 3x380V / 50Hz 3x380V / 50Hz 3x380V / 50Hz Maximal temperature 350 °C 350 °C 350 °C 350 °C 350 °C 350 °C 350 °C 350 °C
