Convection ovens VENTO Model 4 M

	Price: 0 $ Quantity: Add to cart	Manufacturer: HELPAN FORNI Model: Convection ovens VENTO Model 4 M

Details

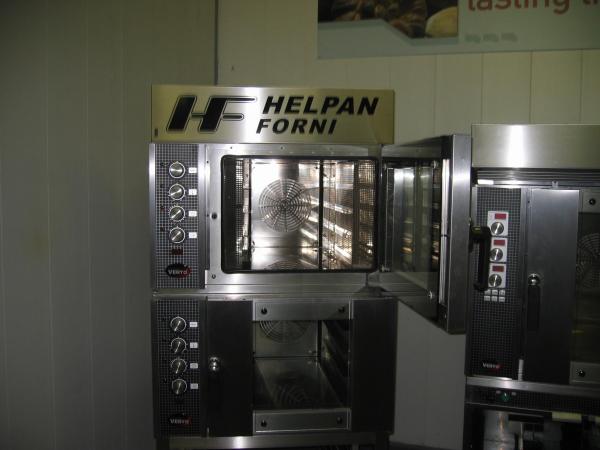

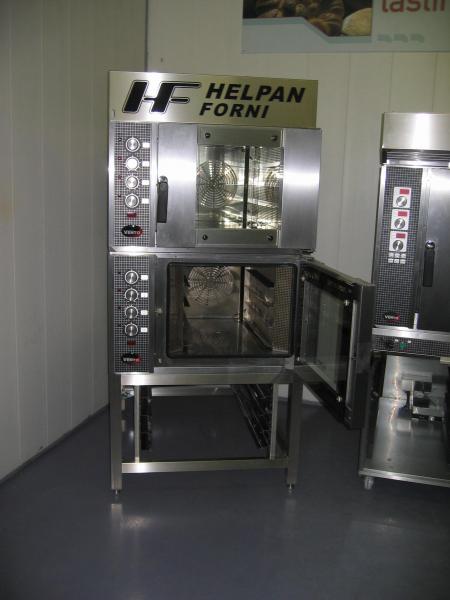

Convection ovens VENTO Model 4 M



Are used for the production of any type of pastry, bread and frozen precooked and any other similar product. They are entirely made of stainless steel and thanks to the perfect air circulation, they ensure even cooking

OUTSTANDING STANDARD

Water discharge at the center of the bottom of the baking chamber

Adjustable feet: ease of positioning on all surfaces

Engines reversing to get a uniform distribution of heat

Also available with open anti-double-tripping accidents

All furnaces can be fitted with mountings for the plates 460x660 mm

DOOR WITH DOUBLE GLAZING FOR THE REDUCTION OF THE OUTDOOR TEMPERATURE

With double glazing with a gap for air circulation, the system ensures the security anti-burn: even when furnace temperatures are at maximum

The external glazing DO NOT EXCEED 40 ° C. The door, strong warranty, has an access system to trigger opening / closing easy, even with busy hands. Also available with an open anti-double tripping accidents

COOKING UNIFORMITY OF HIGH QUALITY

The furnaces are characterized by VENTO INCLUSION OF THE PLATE BY THE CLOSER: the door is smaller and less cumbersome, however, ensuring even cooking quality.

The rack supports are easily removable for cleaning.

OVENS THE FLEXIBLE STRUCTURE

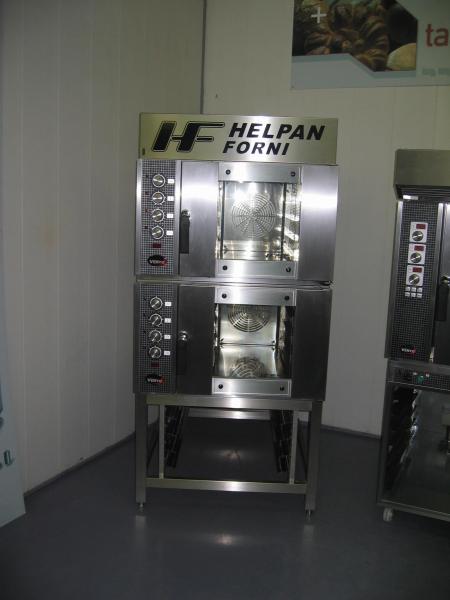

VENTO furnaces are distinguished by a modular structure that allows them to assemble and stacking by space requirements and management solutions the most diverse.

FEET, adjustable height, allow Easy positioning and a good upgrade from the oven on any surface. They are easy to disassemble from outside

Model: 4M

Electromechanical Controls

- Number of plates 4 plates 600x400

-- - Maximum Temperature: 270 Celsius

-- - Voltage: 240 V

- Power: 9 Kw

-- - Frequency: 60 Hertz

-- - Width: 875 mm

-- - Depth: 1245 mm

-- Height: 630 mm

Net Weight: 110 Kg

Optional Accessories Sales

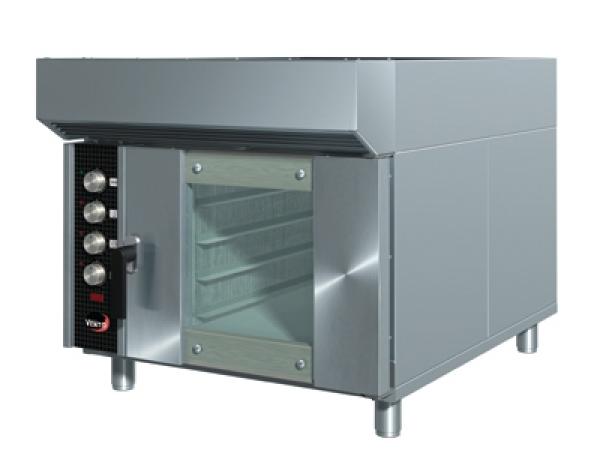

SUCTION HOOD Dimensions: WxDxH mm 875x1240x200

COMPARTMENT OF FERMENTATION Dimensions: WxDxH mm 875x1100x790

TROLLEY PLATES Dimensions: WxDxH 940x665x757 mm - 12 400X600

SUPPORT FOR OVENS WITH CARRIER PLATE dimensions: 875x1065x790 WxDxH mm - 40 kg.

TROLLEY PLATES Dimensions: WxDxH 940x665x757 mm - 12 400X600

Flat plate of aluminum, aluminum / silicon, aluminum / Teflon, aluminum / elastomer

FLAT PLATE PUNCHED aluminum, aluminum / silicon, aluminum / Teflon, aluminum / elastomer

SUPPORT FOR OVENS Dimensions: WxDxH mm 875x1065x790

ROLLER KIT Complete set of 4 casters 2 with brake / 2 without brake

PASTRY SHEETS CORRUGATED PERFORATED WITH 5 LOCATIONS aluminum, aluminum / silicon, aluminum / Teflon

WATER SOFTENER Power: 10 w - Volts: 230 v

SPECIAL PLATE FOR PIZZA

SHOWER WASH

GATES

Product Information Manufacturer: HELPAN FORNI Model: Convection ovens VENTO Model 4 M

Dimensions Width: 875 mm Depth: 1245 mm Height: 630 mm Weight: 110 Kg
